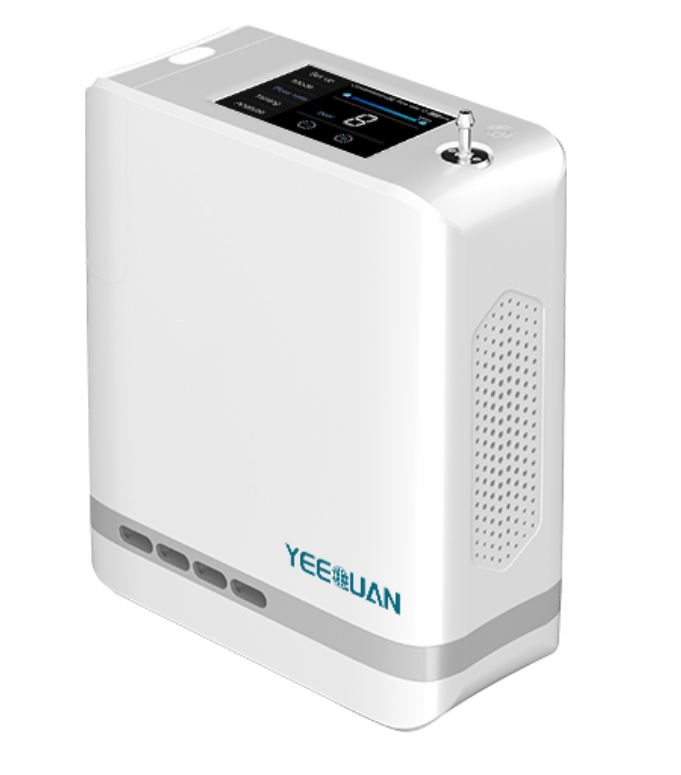

Portable Oxygen Concentrator
It was developed to be small, light, quiet, energy-efficient and for use at home or while traveling. This innovative product family has been thoughtfully designed for patients who prefer to move about more freely.
Main Technical Parameter:
Product Name | Portable Oxygen Concentrator |
Product Model | YQP-7 |
Product Size | YQ-P-7 L'W'H :17.8cm'8.72cm'121.1cm |
Machine weight | 2.23kg |
Battery weight | 0.45kg |
Screen | 2.8'monitor touch screen |
Noise level | 55dB(A)( Setting 7 ) 40dB(A)(Setting 1) |
Operation Altitude | 0~5500M normal use |
Warm-up time | 2 min |
Oxygen Purity | 93%+-3% (at all settings) |
Max flow rate | 7L |
Respiratory rate | 10-40 BPM |
Respiratory Sensitivity | ≤0.12cmH2O |
Maximum Oxygen Discharge Pressure | 20.5PSI |
Max Outlet Pressure | 100KPa+-20% |
AC Power Source | AC100-240V 50/60Hz 60VA MAX |
Internal Battery | 14.4VDC 4A Max |
Battery duration | 4~1.5h （8 cell battery） |
Battery Charging time | 4 hours (8 cell battery) |
Features:
1. Duel mode design . Pulse mode + Continuous mode in one machine .
2.Humidifier bottle design .
3.16 cell batteries available for choice to support long time out going use .
4.We can support SKD or OEM design .
Application:
1. Used in the car for outdoor activities .
2.Especially suitable for shopping,travelling,etc .
3.Short-time outdoor use for patients .
4.Tour in the plateau .
