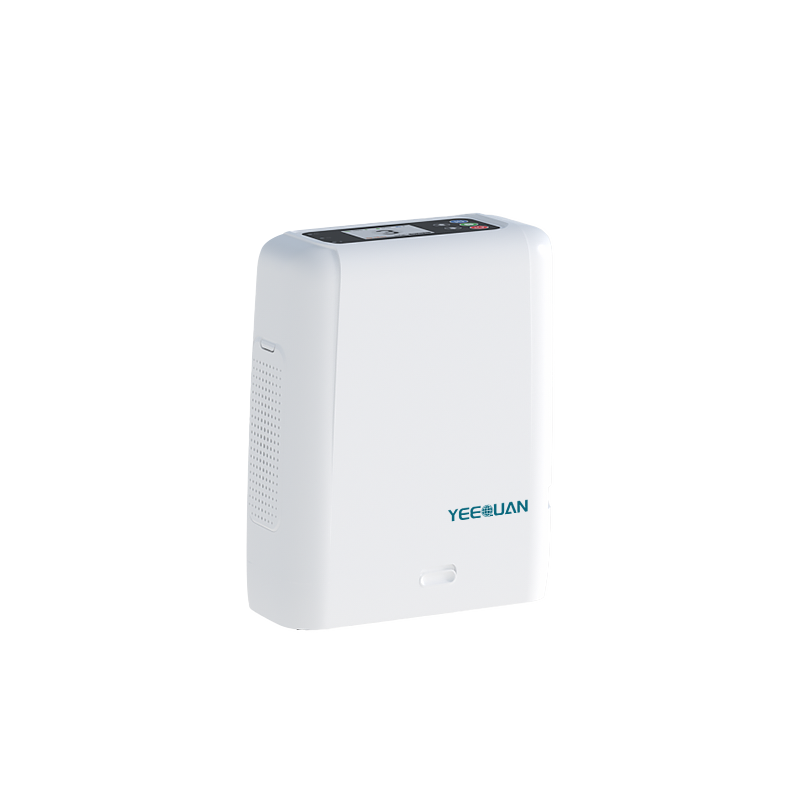

Portable Oxygen Concentrator

Product Model

YQP Series

Product Size

YQ-P5 L'W'H :17.0cm'8.0cm'19.8cm

YQ-P6 L'W"H : 17.0cm'8.0cm'19.8cm

Machine weight

1.45kg

Battery weight

0.45kg

Screen

2.8'monitor

Noise level

55dB(A)( Setting 5 )

42dB(A)(Setting 1)

Operation Altitude

0~5500M normal use

Warm-up time

2 min

Oxygen Purity

93%+-3% (at all settings)

Max flow rate

YQ-P5  5L   /  YQ-P6  6L

Respiratory rate

10-40 BPM

Respiratory Sensitivity

≤0.12cmH2O

Maximum Oxygen Discharge Pressure

20.5PSI

Max Outlet Pressure

100KPa+-20%

AC Power Source

AC100-240V 50/60Hz 60VA MAX

Internal Battery

14.4VDC 4A Max

Battery duration

4~1.5h （8 cell battery）

8~3h (16 cell battery)

Battery Charging time

4 hours (8 cell battery)

8 hours (16 cell battery)
