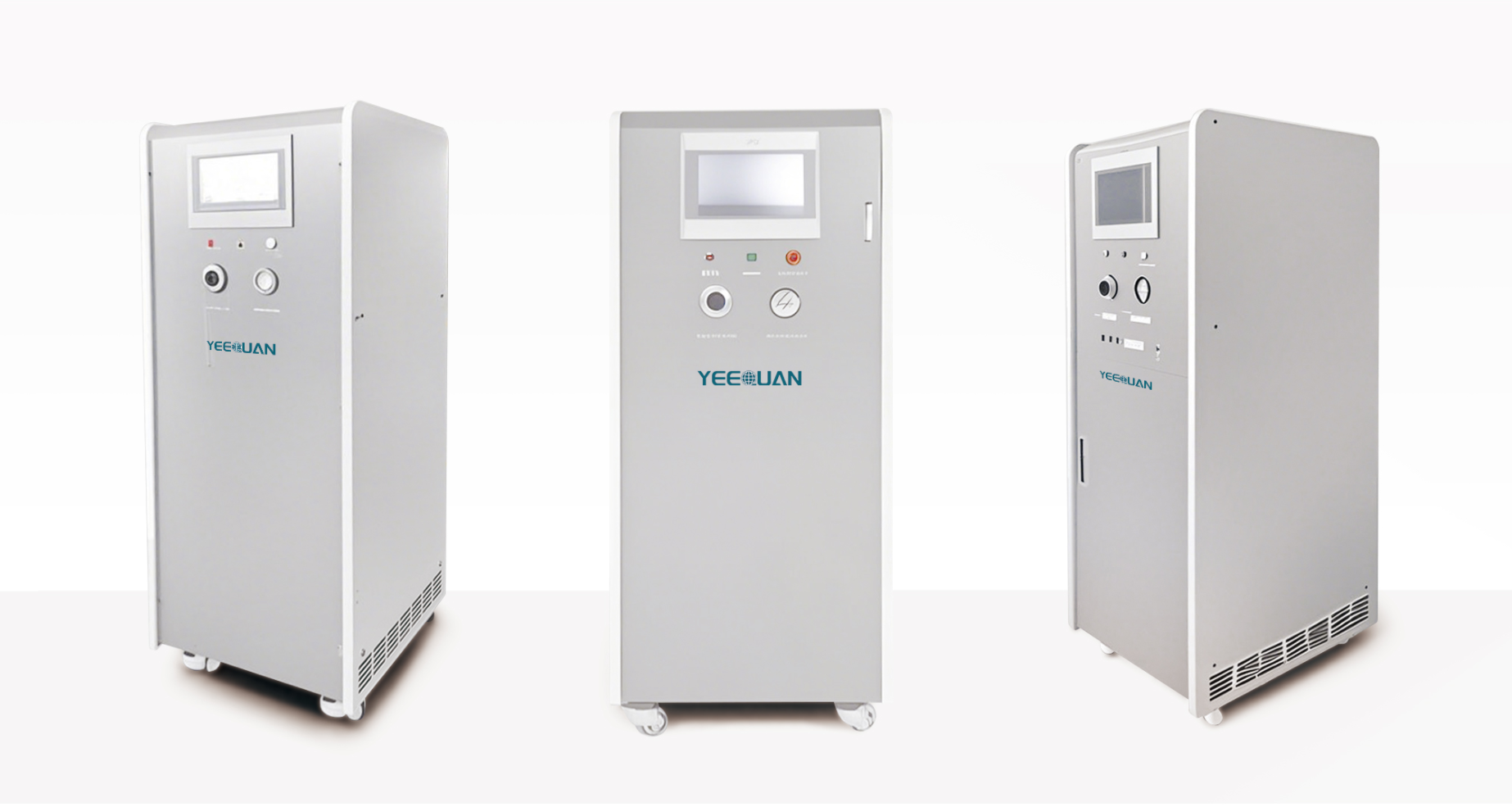

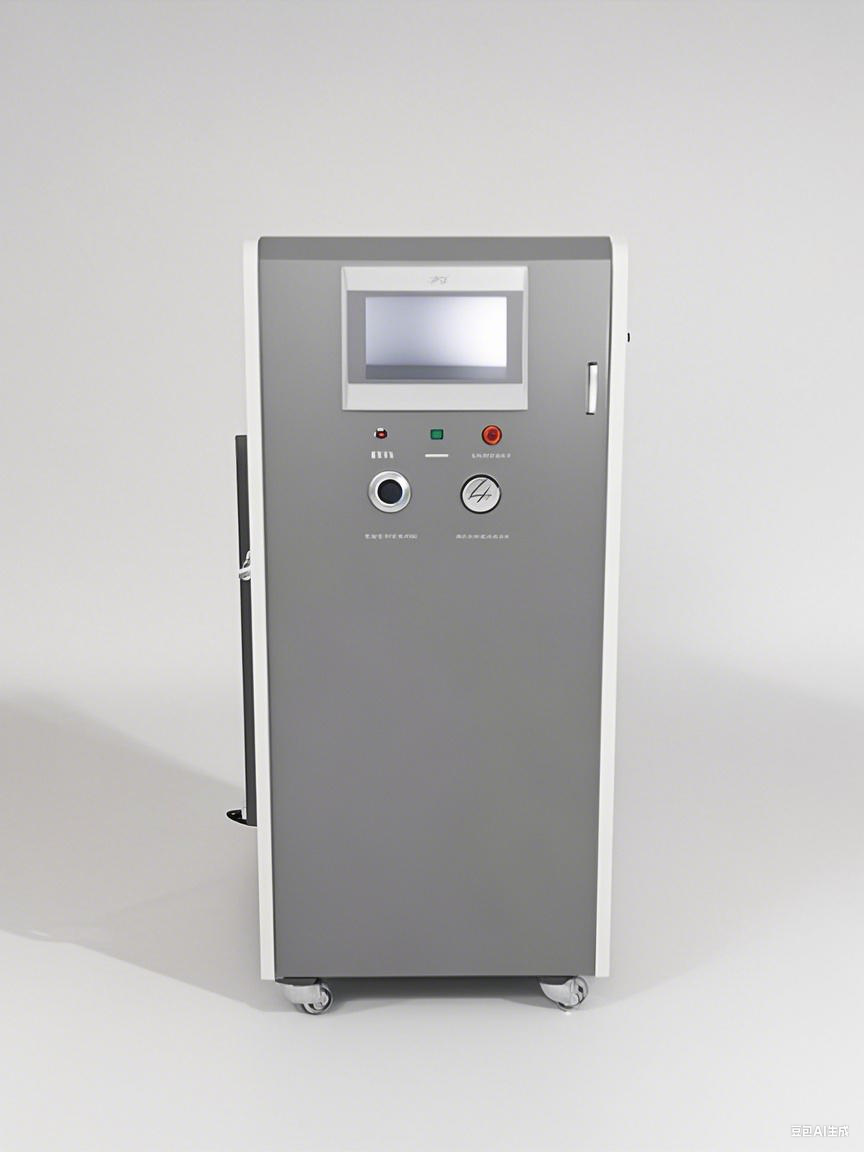

High Pressure Oxygen Generator

Yeequan medical High Pressure Oxygen Generator13L, 25L and 10Loxygen + 45L compressed air

Main Technical Parameter


Model

Oxygen Flow

(m³/h)

Outlet pressure

(Mpa)

Dimention

(mm)

Net weight

(kg)

Noise

(dB)

Power/Voltage

(Kw/V)

YQ-13-HP

0.8 oxygen only

 0.4

 500*415*1025

 74

 <60

 1.1/220

 YQ-25-HP

 1.5 oxygen only

 0.4

 700*430*1040

 112

 <60

 1.8/220

YQ-10&45-HP

0.6 oxygen &

2.7 compressed air

0.4

 700*430*1040

112

<60

1.5/220

oxygen generator 13L25L.png

Features

     1. Born for Operating Room, ICU and small hospitals.

     2. It can be directly connected to the ventilator,anaesthesia machine.flexible and mobile;

     3. Adjust the pressure precisely in accordance with the ventilator's start-up requirements. Max.output pressure up to 0.4Mpa/4 bar;

     4. Oxygen concentration reaches over 90%within 3 minutes of switching on;

     5. Module design, independent operation,easy maintenance;

     6. Comprehensive noise reduction technology, the noise is less than 60 dB.
